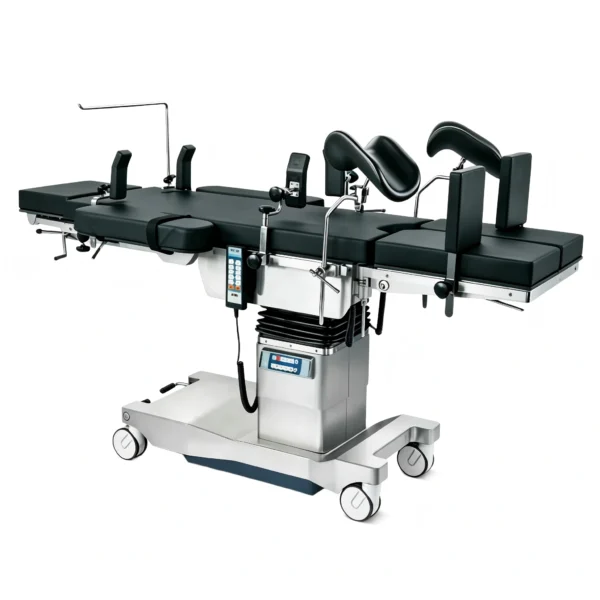

Electric Operating Table KS-EOT1

Technical Parameters:

► Length/Width: 2100 × 550 mm ± 10 mm;

► Height Elevating/Lowering: 700-1000 mm ± 10 mm;

►Trendelenburg:≥25°

►Reverse Trendelenburg:≥25°

►Lateral Tilt(left/right):15°/15°

►Head Rest(up/down):45°/90°

►Footplate(up/down&horizontal positioning):15°/90° 90°

►Back plate(up/down):80°/20°

►Kidney bridge:110mm

►Longitudinal Sliding:350mm

Standard Accessories:

► Anesthesia Screen: 1 unit;

► Shoulder Supports: 1 pair;

► Arm Support : 1 pair;

►Body Suppport: 1 pair;

►Knee Crutch: 1 pair;

►Matress: 1 unit;

Electric Operating Table KS-EOT1 – Precision, Durability, and Versatility for Modern Surgery

Designed for today’s demanding surgical environments, the KS-EOT1 Electric Operating Table delivers reliable performance, exceptional positioning flexibility, and lasting durability. This electrically driven system supports a wide range of procedures—from general surgery to orthopedics, urology, and gynecology—making it a practical choice for hospitals, ambulatory surgical centers, and specialty clinics.

Superior Positioning Capabilities

With dimensions of 2100 × 550 mm (±10 mm), the KS-EOT1 accommodates patients of varying builds while maintaining a compact footprint. The height adjusts electrically from 700 mm to 1000 mm (±10 mm), enabling comfortable ergonomic access for surgical teams. Key movements include Trendelenburg and reverse Trendelenburg angles of ≥25°, lateral tilt of 15° left/right, and a back plate that articulates 80° upward and 20° downward. The head rest moves 45° upward and 90° downward, while the footplate offers 15° upward, 90° downward, and 90° horizontal positioning. A kidney bridge elevation of 110 mm and longitudinal sliding of 350 mm further enhance surgical access, particularly for renal, biliary, and laparoscopic procedures.

Engineered for Safety and Workflow Efficiency

The electric operating table is constructed with high-strength materials and a low-friction surface, ensuring stable load support during critical maneuvers. The intuitive hand-control interface allows for smooth, single-operator adjustments, reducing preparation time between cases. All movements are locked securely to prevent unintended shifts, supporting patient safety and procedural precision.

Comprehensive Standard Accessories

Each KS-EOT1 unit includes a full set of accessories: an anesthesia screen, one pair each of shoulder supports, arm supports, body supports, and knee crutches, plus a pressure-relieving mattress. These components are designed for quick attachment and detachment, facilitating rapid configuration changes without disrupting workflow.

Built to Last, Backed by Support

Manufactured under ISO-compliant quality systems, the KS-EOT1 undergoes rigorous testing for structural integrity, electrical safety, and smooth articulation. We offer transparent documentation, including test certificates and user manuals. For facilities with unique spatial or procedural requirements, customization options are available—from accessory configurations to surface finishes—ensuring the electric operating table aligns with your clinical environment.

Start Your Surgical Suite Upgrade Today

Whether you are equipping a new OR or replacing aging tables, the KS-EOT1 offers competitive pricing, prompt delivery, and a responsive after-sales team. Contact our sales engineers for a tailored quote, product demo, or to discuss bulk order discounts. Request your specification sheet now and see how the KS-EOT1 can improve your surgical efficiency.
