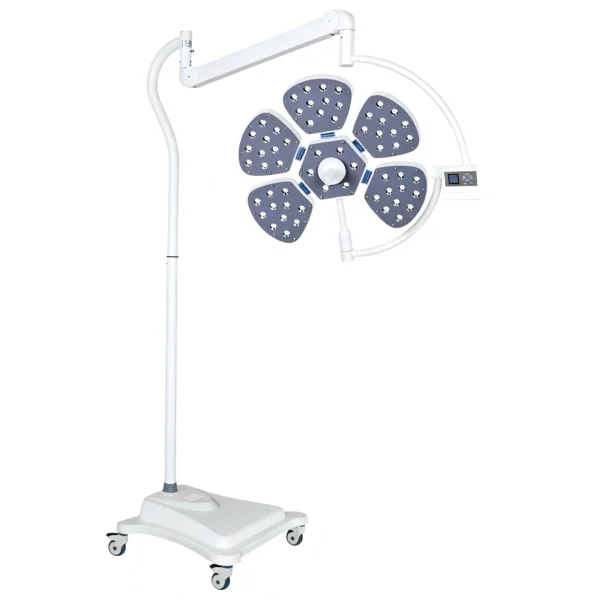

LED Operating Lamp KS-MOL05C

Technical Parameters:

►Diameter of lighthead(mm): 650
►Illumination at 1m(Lux): 40000-180000
►Brightness control range: 0-100% stepless adjustment
►Color Temperature(Kelvin): 4000-6000
►Color Rendering Index(CRI): 85-95
►Temperature rise(Surgeon head)(℃): ≤1
►Temperature rise(Surgical field)(℃): ≤1
►Total Irradiance Ee(W/m2): ≤573
►Radiant Power Ee/Ec(mW/m2 lux): ≤4
►Effective Focusing Depth(cm): 60-130
►Lighting Spot Size(cm): 16-28
►L1+L2 depth of illumination(cm): ≥130
►Bulb Type: LED
►Bulb Brand: OSRAM
►Bulb Quantity: 71
►Bulb Powe(w): 71
►Average Bulb Life(hours): 80000

KS-MOL05C LED Operating Lamp – Precision Illumination for Modern Surgery

The KS-MOL05C represents a refined balance of advanced LED technology and practical surgical design. Engineered to meet the rigorous demands of operating theatres, this 650mm-diameter luminaire delivers exceptional, homogeneous illumination that enhances visibility without compromising surgeon comfort.

At the heart of the KS-MOL05C are 71 OSRAM LEDs, consuming just 71W while delivering a remarkable illuminance range of 40,000 to 180,000 Lux at 1 meter. This ensures crisp, shadow-free light across the entire surgical field. The correlated color temperature is adjustable from 4000K to 6000K, allowing clinicians to tailor the light spectrum for optimal tissue differentiation, supported by a high Color Rendering Index (CRI) of 85-95.

Thermal management is a critical advantage of this operating lamp. With a temperature rise of ≤1°C on both the surgeon’s head and the wound site, the KS-MOL05C minimizes desiccation risks and ensures long-duration procedural comfort. The total irradiance (Ee) is capped at ≤573 W/m², with an Ee/Ec ratio of ≤4 mW/m² lux, positioning this unit as a safe, low-heat solution for delicate interventions.

The optical system provides an effective focusing depth of 60-130 cm and an adjustable light spot size from 16 to 28 cm, offering exceptional flexibility for various surgical specialties. The L1+L2 depth of illumination reaches ≥130 cm, maintaining consistent light quality in deep cavities—a feature highly valued in orthopedics and neurosurgery. Brightness is fully adjustable from 0-100% via a stepless control system, giving surgeons instant command over their lighting environment.

Built with durability in mind, the OSRAM LEDs boast an average lifespan of 80,000 hours, drastically reducing maintenance costs and downtime. We back this operating lamp with comprehensive quality assurance and offer customization options to match specific installation needs.

For detailed specifications, a personalized quote, or to discuss your surgical lighting requirements, please contact our sales team today. Let us help you enhance your operating room efficiency with the KS-MOL05C.
