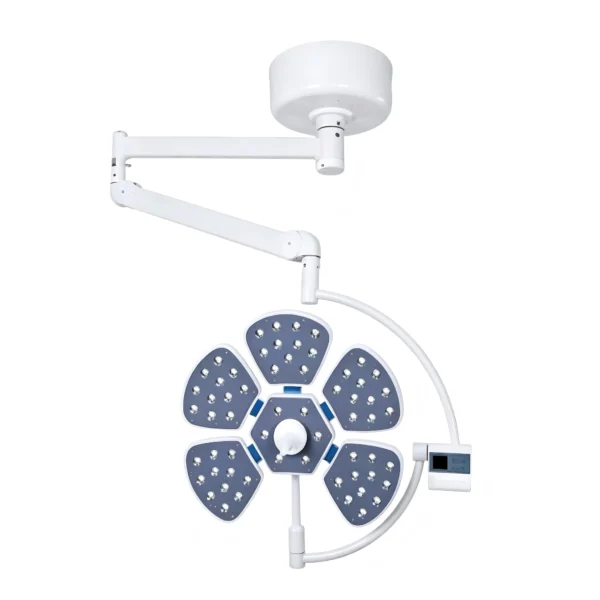

LED Operating Lamp KS-OL05C

Technical Parameters:

►Diameter of lighthead(mm): 650
►Illumination at 1m(Lux): 40000-160000
►Brightness control range: 0-100% stepless adjustment
►Color Temperature(Kelvin): 4000-6000
►Color Rendering Index(CRI): 85-95
►Temperature rise(Surgeon head)(℃): ≤1
►Temperature rise(Surgical field)(℃): ≤1
►Total Irradiance Ee(W/m2): ≤573
►Radiant Power Ee/Ec(mW/m2 lux): ≤4
►Effective Focusing Depth(cm): 60-130
►Lighting Spot Size(cm): 16-28
►Depth of illumination(cm): 120
►Bulb Type: LED
►Bulb Brand: OSRAM
►Bulb Quantity: 61
►Average Bulb Life(hours): 80000

KS-OL05C LED Operating Lamp – High-Intensity Surgical Illumination

Precision surgery demands uncompromising visibility. The KS-OL05C LED operating lamp is engineered to deliver that clarity, combining advanced photonics with durable German engineering to support modern surgical theaters. This 650mm-diameter lighthead produces a central illumination range of 40,000 to 160,000 Lux at 1 meter, ensuring deep cavity visualization even for complex procedures such as neurosurgery and cardiovascular interventions.

The KS-OL05C LED operating lamp features a stepless brightness control from 0 to 100%, allowing surgeons to adjust intensity on the fly without disrupting workflow. Its adjustable color temperature spans 4,000K to 6,000K, accommodating tissue differentiation needs under varying ambient conditions. With a Color Rendering Index (CRI) between 85 and 95, this surgical light renders reds and vasculature with exceptional fidelity, reducing eye fatigue during extended operations.

Thermal management is critical in closed environments. This LED operating lamp maintains a temperature rise of ≤1°C on both the surgeon’s head and the surgical field, minimizing desiccation risks. Total irradiance stays at ≤573 W/m², with an Ee/Ec ratio of ≤4 mW/m² lux, well within photobiological safety thresholds. The effective focusing depth ranges from 60 to 130 cm, while spot size adjusts between 16 and 28 cm, offering a depth of illumination of 120 cm—ideal for both superficial and deep-site surgeries.

At its core, the KS-OL05C integrates 61 OSRAM LEDs with an average lifespan of 80,000 hours, drastically reducing maintenance cycles and total cost of ownership. This reliable LED operating lamp is backed by rigorous factory testing and complies with international medical electrical standards.

We offer OEM/ODM customization for mounting systems, control interfaces, and sterile handle designs to meet specific OR configurations. Our 2-year warranty and responsive technical support ensure your investment remains protected.

Ready to upgrade your surgical lighting? Contact our team today for a detailed spec sheet, bulk pricing, or to schedule a live demonstration. Request your customized quote now—we ship globally with fast lead times.
