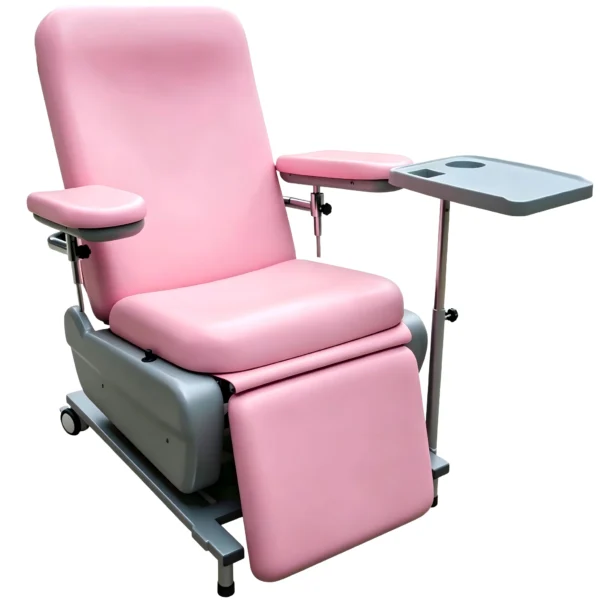

Manual Dialysis Chair KS-MDC1

Technical Parameters:

► Seat Size (L × W): 1800 × 580mm (Max width with armrests: 700mm)

► Total length (backrest + seat + leg rest): 1000mm

► Seat Height: 480mm

► Seat Forward/Backward Tilt Angle: 8 ~ 15°

► Backrest Folding Angle: 0 ~ 70°

► Leg Rest Adjustment Range: 0 ~ 90°

► Armrest Outward Swing Angle: 0 ~ 45°

► Armrest Panel Size (L × W): 500 × 160mm

► Armrest Tilt Angle: -10°

► Armrest Vertical Adjustment Range: 0 ~ 100mm

► Max. Load Capacity: ≥ 220kg

Standard Accessories:

► Flexible Mattress: 1 set

► Armrest Frame: 1 pair

► Power Cord: 1 unit

► Hand Controller: 1 unit

KS-MDC1 Manual Dialysis Chair – Engineered for Comfort and Clinical Efficiency

Designed specifically for long-duration hemodialysis procedures, the KS-MDC1 Manual Dialysis Chair delivers an optimal balance of patient comfort, caregiver convenience, and structural durability. This manual dialysis chair features a generously sized seat (1800×580mm) and a total length of 1000mm, accommodating a wide range of body types while ensuring stable support throughout treatment sessions.

Exceptional adjustability allows clinicians to fine-tune positioning with precision. The backrest folds from 0 to 70°, the leg rest adjusts up to 90°, and the seat offers forward/backward tilt ranging from 8 to 15°, enabling Trendelenburg and reverse Trendelenburg positions as needed. The armrests swing outward up to 45° and feature a -10° tilt with 100mm vertical adjustment, facilitating easy patient transfer and vascular access. With a maximum load capacity of ≥220kg, this hemodialysis chair is built for reliability in demanding clinical environments.

The standard flexible mattress set enhances pressure redistribution, reducing the risk of pressure injuries during extended use. The intuitive hand controller empowers nursing staff to make rapid adjustments, streamlining workflow in busy dialysis centers, hospital nephrology wards, and outpatient infusion suites. Every component is constructed with high-grade materials to withstand rigorous daily disinfection protocols.

We back the KS-MDC1 with comprehensive quality assurance and offer customization options for upholstery colors and accessory configurations to meet specific institutional requirements.

Ready to upgrade your dialysis suite? Contact us today for volume pricing, technical specifications, or to request a sample evaluation unit. Our team is standing by to provide tailored solutions for your facility.
