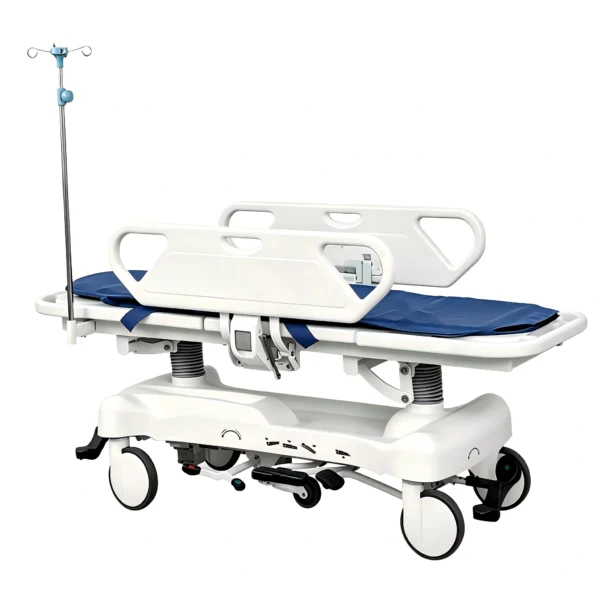

Patient Transfer Trolley KS-PT03

Technical Parameters:

►Size (LxWxH): 1910x640x650-960mm±10mm (Height from floor to bed platform)

►Size (LxWxH): 1910x640x650-1260mm±10mm (Height from floor to raised guardrail)

►Back-rest Adjustment: 0-75°±10°

►Reverse Trendelenburg: 0-15°±2°

►Trendelenburg: 0-15°±2°

Technical Configuration:

►Hydraulic Pump: 2pcs

►Back Rest Air Spring: 1pc

►ABS Side Rail: 1set

►8″ Castors with Central Locking: 4pcs

►Directional Wheel: 1pc

►IV Pole Previsions: 2pcs

►IV Pole: 1set

►Central Locking Break Pedal: 2sets

►Transfer Mattress: 1pc

►Directional Pedal: 2pcs

►Static Bearing Capacity: 250KG

►Dynamic Bearing Capacity: 135KG

KS-PT03 Patient Transfer Trolley – Engineered for Safe and Efficient Patient Handling

Designed for hospitals, emergency departments, and aged care facilities, the KS-PT03 patient transfer trolley combines robust construction with precision functionality to support clinical workflows. This versatile transport trolley streamlines patient movement while prioritising caregiver safety and patient comfort.

Superior Adaptability and Control
The KS-PT03 features a height-adjustable bed platform from 650 mm to 960 mm (floor to deck), extendable to 1260 mm with raised side rails, facilitating easy transfers between stretchers, operating tables, or beds. The backrest adjusts smoothly from 0 to 75°, while both Trendelenburg and Reverse Trendelenburg positions are achievable up to 15° – critical for circulatory support and postural drainage procedures.

Reliable Hydraulic and Mobility System
Equipped with dual hydraulic pumps and a backrest air spring, this patient transfer trolley delivers stable, quiet, and effortless positioning. Four 8-inch castors with central locking ensure firm stability during transfers, complemented by a directional wheel and intuitive directional pedals for easy maneuvering in tight corridors. The central locking brake pedals (two sets) provide instant security at the point of care.

Durable, Safe, and Patient-Centric
The ABS side rails offer dependable fall protection, and the included transfer mattress enhances patient comfort during movement. With a static load capacity of 250 kg and a dynamic capacity of 135 kg, the KS-PT03 accommodates a wide range of patient types. IV pole previsions and a complete IV pole set support continuous care during transport.

Built for Clinical Excellence
Manufactured to stringent quality standards, every unit undergoes rigorous testing to ensure long-term reliability. We offer customisation options – from accessory configurations to colour finishes – to meet specific departmental needs. Our team provides full after-sales technical support and warranty coverage.

Partner with Us
Upgrade your patient transport workflow with the KS-PT03. Contact our sales team today for a detailed specification sheet, customised quote, or to schedule a product demonstration. We are committed to delivering medical equipment that enhances efficiency and safety – reach out now to discuss your requirements.
