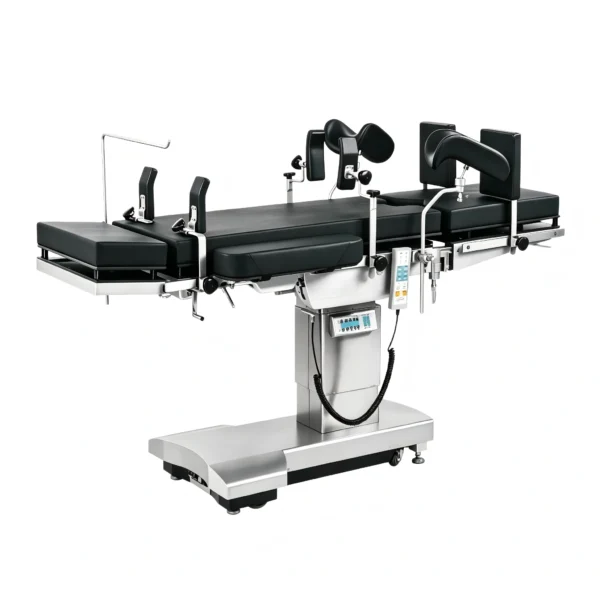

Electro-hydraulic Operation Table KS-EHOT1

Technical Parameters:

► Length/Width: 1960 × 500 mm ± 10 mm;

► Height Elevating/Lowering: 690-1100 mm ± 10 mm;

►Trendelenburg:30°

►Reverse Trendelenburg:30°

►Lateral Tilt(left/right):20°/20°

►Head Rest(up/down):40°/85°

►Footplate(up/down&horizontal positioning):15°/90° 90°

►Back plate(up/down):90°/40°

►Longitudinal Sliding:350mm

Standard Accessories:

► Anesthesia Screen: 1 unit;

► Shoulder Supports: 1 pair;

► Arm Rests: 1 pair;

►Body Suppport: 1 pair;

►Knee Crutch: 1 pair;

►Matress: 1 unit;

Electro-hydraulic Operating Table KS-EHOT1

Designed for modern surgical environments, the KS-EHOT1 electro-hydraulic operating table delivers the precision, stability, and versatility required for a wide spectrum of surgical disciplines. This premium surgical table integrates robust engineering with an intuitive electro-hydraulic drive system, ensuring smooth, quiet, and reliable positioning throughout even the most demanding procedures.

The operating table’s technical parameters are engineered to support comprehensive surgical access. With an overall length of 1960 mm and a width of 500 mm (±10 mm), the KS-EHOT1 accommodates a broad range of patient anatomies. Its height adjustment range of 690 mm to 1100 mm (±10 mm) facilitates optimal ergonomic positioning for the surgical team, while the extensive articulation capabilities—including 30° Trendelenburg and reverse Trendelenburg, 20° lateral tilt (left/right), a head rest with 40° upward and 85° downward flexion, and a back plate that adjusts from 90° upward to 40° downward—offer exceptional flexibility. The footplate features 15° upward and 90° downward positioning plus a 90° horizontal lock, and the table includes 350 mm of longitudinal sliding for enhanced C-arm and imaging access. These specifications ensure the KS-EHOT1 meets the rigorous demands of a high-performance surgical table.

The KS-EHOT1 is equipped with a comprehensive set of standard accessories to support diverse surgical workflows, including an anesthesia screen, shoulder supports, arm rests, body supports, knee crutches, and a durable mattress. This medical operating table is built to facilitate seamless integration into any operating room, providing the dependability and safety that healthcare professionals require.

For detailed technical specifications, customization options, or to request a quotation, please contact our sales team today. We are committed to providing the surgical solutions that support your clinical excellence.
