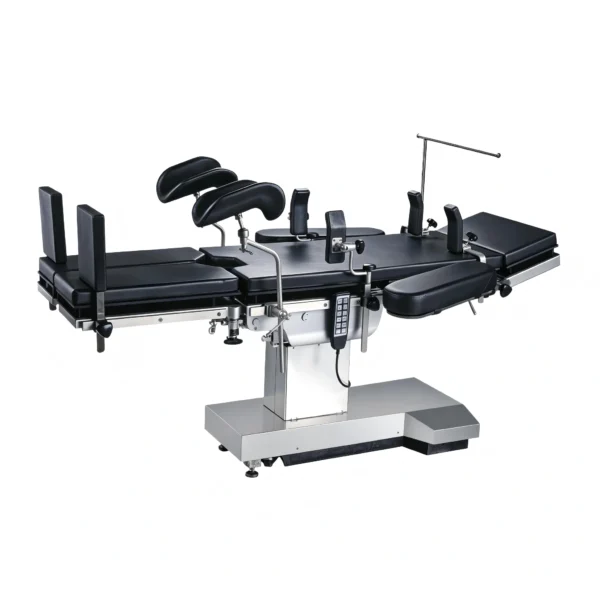

Electro-hydraulic Operation Table KS-EHOT2

Technical Parameters:

► Length/Width: 1960 × 500 mm ± 10 mm;

► Height Elevating/Lowering: 690-1090 mm ± 10 mm;

►Trendelenburg:30°

►Reverse Trendelenburg:30°

►Lateral Tilt(left/right):20°/20°

►Head Rest(up/down):60°/85°

►Footplate(up/down&horizontal positioning):15°/90° 90°

►Back plate(up/down):85°/40°

►Longitudinal Sliding:340mm

Standard Accessories:

► Anesthesia Screen: 1 unit;

► Shoulder Supports: 1 pair;

► Arm Rests: 1 pair;

►Body Suppport: 1 pair;

►Knee Crutch: 1 pair;

►Matress: 1 unit;

KS-EHOT2 Electro-Hydraulic Operating Table – Precision Positioning for Multidisciplinary Surgical Workflows

The KS-EHOT2 electro-hydraulic operating table is engineered to deliver reliable, smooth, and versatile positioning for modern surgical environments. With a robust electro-hydraulic drive system, this operating table supports a comprehensive range of articulations, enabling surgical teams to configure patient positioning efficiently across multiple specialties.

Comprehensive Positioning Capabilities

The KS-EHOT2 provides extensive range of motion to meet diverse procedural demands. The table offers a height adjustment range of 690–1090 mm, allowing clinicians to achieve optimal working ergonomics. Trendelenburg and reverse Trendelenburg positions are available at 30° each, while lateral tilt reaches 20° on both sides to facilitate access during complex interventions. The backplate articulates from 85° upward to 40° downward, and the headrest adjusts from 60° upward to 85° downward, ensuring flexible patient support for neurosurgical, orthopedic, and general surgery applications. The footplate supports 15° upward, 90° downward, and 90° horizontal positioning for lithotomy and other specialized approaches.

Imaging Compatibility and Surgical Access

A key advantage of the KS-EHOT2 is its 340 mm longitudinal sliding function, which enables seamless C-arm and X-ray imaging without repositioning the patient. This feature enhances intraoperative workflow and reduces procedure time, particularly valuable in spinal, vascular, and trauma surgeries where real-time imaging guidance is critical.

Durable Construction and Standard Accessories

Manufactured with high-strength materials and corrosion-resistant surfaces, the KS-EHOT2 is designed for the rigorous demands of daily OR use. The 1960 × 500 mm tabletop accommodates a wide patient population while maintaining stability. Standard accessories include an anesthesia screen, shoulder supports, arm rests, body supports, knee crutches, and a seamless mattress, providing a complete solution upon delivery.

Quality Assurance and Customization

Our electro-hydraulic operating tables are manufactured under strict quality control standards, ensuring consistent performance and long-term reliability. We offer customization options to meet specific hospital requirements, including accessory configurations and tabletop modifications.

Ready to equip your OR with the KS-EHOT2? [Contact our sales team] for detailed specifications, customization inquiries, or to request a quotation. We are here to support your surgical excellence.
